Seven Core Process Stages

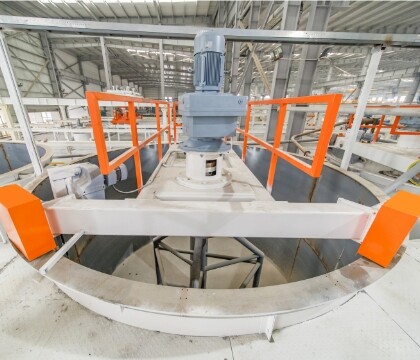

Raw Material Processing - Pulping and Mixing Equipment
Work Section1

Raw Material Processing Section

Grind, store, and slurry calcium silicate raw materials to supply qualified feedstock for subsequent production.

Ball MillPowder siloSlurry tankBlender

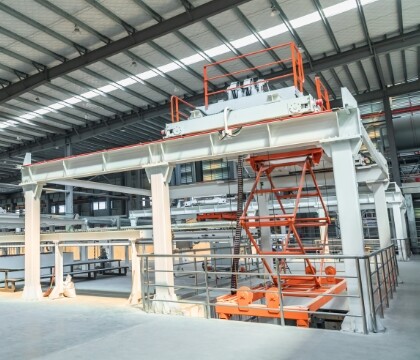

Rebar Mesh and Automatic Loop Section - Assembly Frame Loop Conveying System
Work Section2

Reinforced Steel Mesh and Automatic Loop Section

Automated welding and cyclic conveyance of steel mesh for enhanced panel structural integrity and production efficiency.

Wire Mesh Welding MachineAutomated Assembly Frame Conveyor System

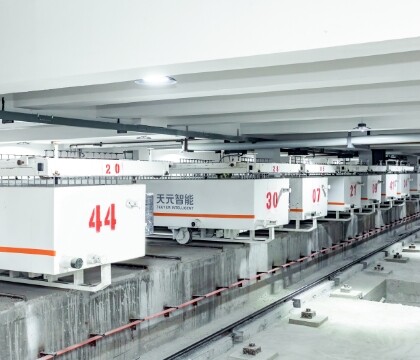

Ingredients and Casting Curing Section - Curing Kiln Car
Work Section3

Ingredient Preparation and Casting Curing Stage

Precisely mix raw materials, cast and cure to form the block structure.

Slurry and Powder Dosing SystemPouring Mixer

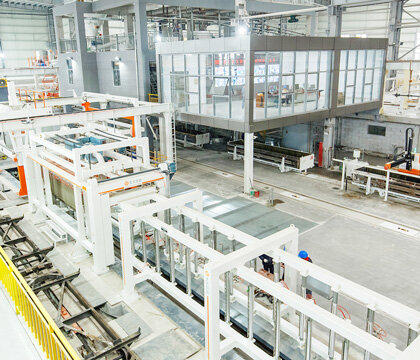

Cutting Section – Tilt Crane and Cutting Unit
Work Section4

Cutting Section

High-precision cutting equipment precisely cuts the blank to ensure product dimensional accuracy.

Flip CraneCutting UnitTable Flip

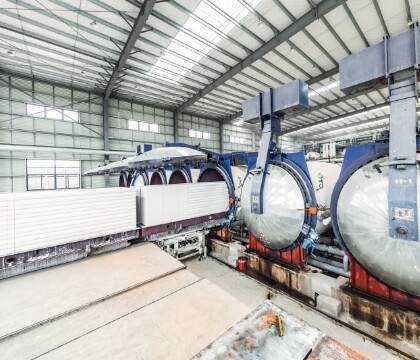

Autoclave Curing Section - Autoclave Equipment
Work Section5

Autoclave curing section

High-temperature, high-pressure steam curing delivers superior mechanical properties and durability.

Towing mechanismAutoclaveShuttle

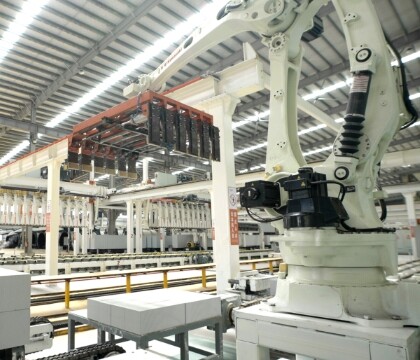

Product Sorting and Packaging Stage – Robotic Finished Product Gripper
Work Section6

Product Sorting and Packaging Station

Automated sorting, packaging, and conveying for efficient finished goods outbound logistics.

Sheet BenderFinished FixtureBlock/Panel Conveyor Line

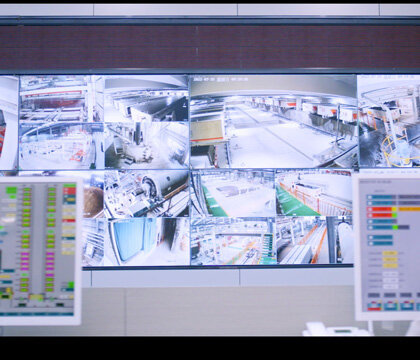

Central Control Room – Multi-Screen Monitoring and Control System
Work Section7

Central Control

Supports multiple control modes, including semi-automatic and fully automatic, to meet diverse production needs and enable intelligent line-wide management.

Semi-AutomaticFully automatic control
